ZWO T / T2 Tilter Adapter for ASI and Other T-Threaded Cameras
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

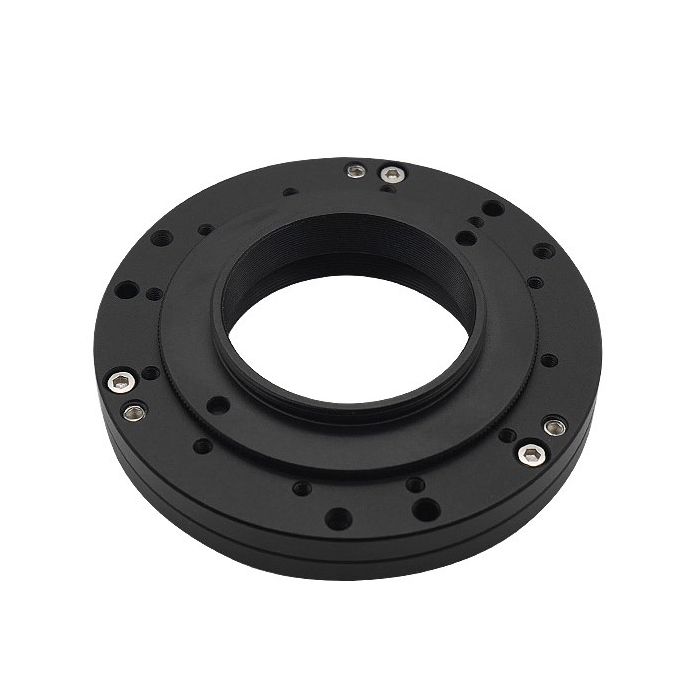

- ZWO T2 Tilt Adjuster enables perfect alignment between a camera and a slightly tilted focal plane using six knurled adjustment knobs; Also ideal for tilting a camera to reduce ‘Newton’s Rings’ when imaging with an H-alpha solar filter (camera and solar filter sold separately)
- Black anodized metal body with threaded female T2 (M42x0.75) interface on both sides; Male T2 adapter ring can be removed if needed
- Optical thickness is 11mm with T2-T2 adapter removed. The T2-T2 adapter adds 2mm. Diameter is 78mm.
The New T2 tilter adds multiple screw holes to help connect to ZWO 2" EFW (compatible EFW 5x2 and EFW 7X2).
Package and size
- Main body：Diameter 78mm，11mm without the T2-T2 adapter
- T2-T2 adapter：Thickness 2mm
- Interface: T2 (M42*0.75 thread) each side
Product usage
- Mainly used to reduce newton ring when imaging ha-solarï¼›
- Also used to adjust the camera imaging plane by rotating the six nuts in the main body when the sensor plane is uneven.
Applicable cameras
All ASI cameras except ASI071, ASI2600 and ASI6200.
Connection method
1. Cooled camera: ASI294/ASI1600/ASI183/ASI533
2. Non-cooled camera:
ASI294/ASI1600/ASI183/ASI174
These cameras do not need to connect to the T2-T2 adapter

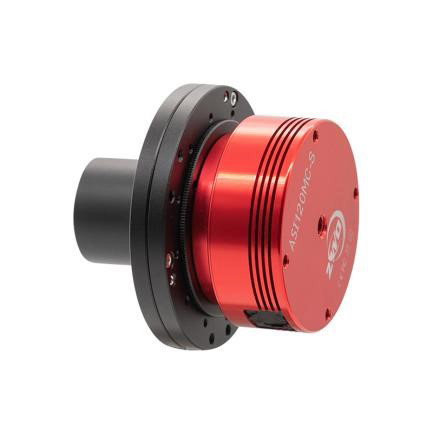

ASI178/ASI290/ASI224/ASI120
These cameras need to connect to the T2-T2 adapter first.
