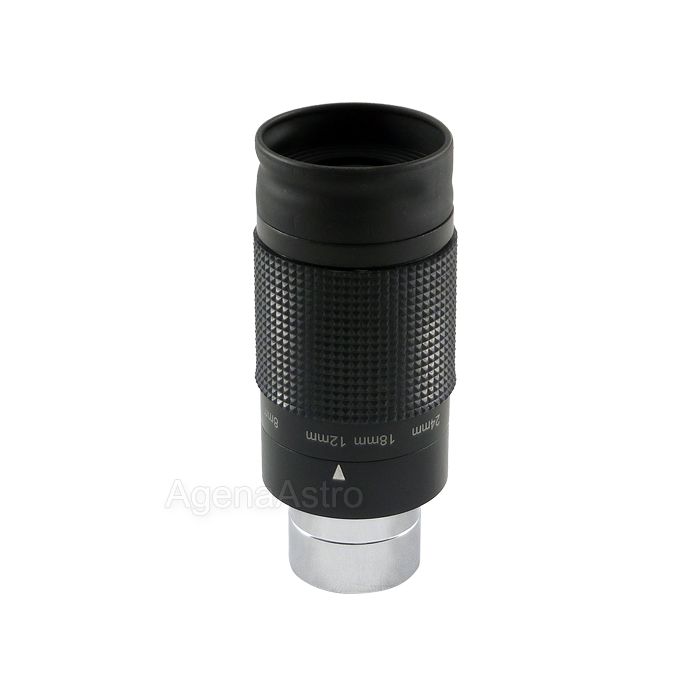

Agena 1.25" Zoom Eyepiece 8-24mm with T-Thread
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Continuous focal length zoom of 8mm to 24 mm for a wide range of magnification without the need to switch eyepieces
- Multi-coated optics for bright and high-contrast views
- Long eye relief of 15-18 mm for comfortable viewing position, even for eyeglass wearers
- Threaded at bottom for standard 1.25" filters
- Threaded at the top for camera T-adapter (standard M42x0.75 male thread) for eyepiece projection imaging of planets, Moon, and terrestrial targets (T-ring required for camera not included)
There are a number of things that you will thoroughly enjoy as an owner of this Agena "StarGuider" 8-24mm 1.25” zoom eyepiece which is specifically designed for both visual and photographic use.
This high quality 8 to 24mm range zoom eyepiece comes well equipped to suit the demands and ease of use of the amateur astronomer. Equipped with a generous 40° to 60° field of view and a non-click stop adjustment mechanism, this eyepiece allows smooth transitioning between focal lengths, ensuring that the observer can find the perfect combination of field of view and magnification that the target object and seeing conditions will allow.
Eyeglass wearers will also find that this eyepiece’s long 15mm to 18mm eye relief combined with a flip down rubber eye guard ensures that even they can easily take advantage of the many benefits provided by this eyepiece’s high quality multi-coated optics and zoom capability.
The single feature that sets this zoom eyepiece above all others is its unique adaptability for eyepiece projection photography. The eyepiece is threaded at the top for a T-adapter (standard M42x0.75 male thread) and at the bottom for 1.25” filters (standard M28.5x0.6 female thread), enabling owners of any T-thread mountable camera to photograph the planets, the moon and high powered terrestrial targets at broad range of focal lengths! In addition to your D/SLR camera, you will require a T-ring for your camera (not included) to use this feature. To access this male M42 T/T2 thread, simply pull off the rubber eyeguard gently.
Featuring a multi-coated optical design, this eyepiece will be providing high contrast views and unparalleled ease of use whether it be for photography or visual observing, for years to come.
Please Note: Many zoom eyepieces will produce a muffled rattling sound when shaken. This is due to the clearances required for moving parts of the zoom mechanism, and does not indicate defects or loose lenses. This sound is completely normal.
| Manufacturer | Agena AstroProducts |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Focal Length | 8-24mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 40° (at 24mm) - 60° (at 8mm) |
| Eye Relief (Designed) | 15-18 mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 6 |
| Lens Groups | 4 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Yes - Manufacturer Supplied |
| Protective Plastic Storage Container Size | Replacement: Agena 52x80mm |
| Height (With Eyeguard Extended) | 4.28" (108.8mm) |
| Height (Without Eyeguard) | 3.82" (97.1mm) |
| Maximum Width | 1.81" (46.0mm) |
| End Caps | 2 |
| Eye Lens Diameter | 22.5mm (0.89") |
| Parfocal | No |
| Rubber Eye Guard | Yes |
| Weight | 7.7oz (217g) |
| Country of Manufacture | China |
| Hide Found a better Shipped Price on Frontend? | No |
