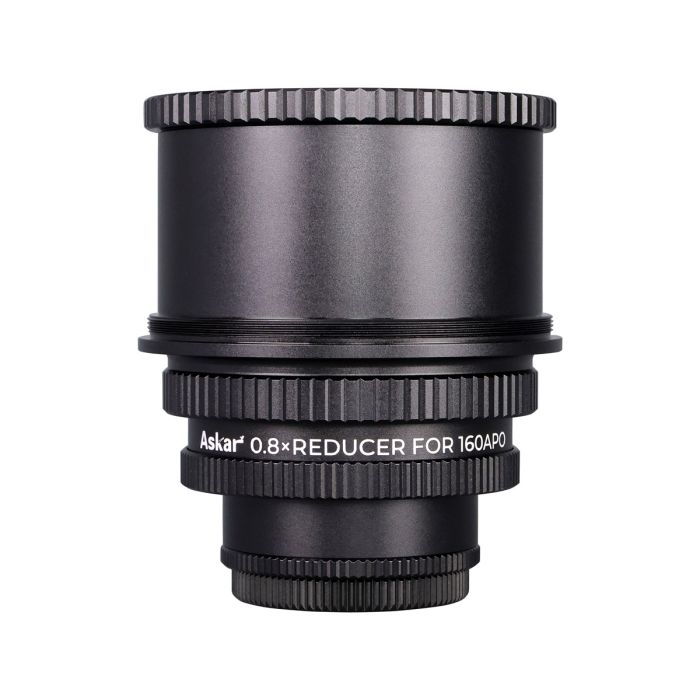

Askar 0.8x Full Frame Reducer / Flattener for 160APO Telescope
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Askar 160 APO comes with three optional premium accessories, a 1.0x flattener and a 0.8x reducer. Introduced here is the 0.8x reducer, which is optimized for the Askar 160APO, and can provide more possibilities for telescope use.
The 0.8x reducer can bring Askar 160APO's focal ratio down to F5.6. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for capturing large areas of nebulae, star clusters, and faint, fast-moving celestial objects.
The 0.8x reducer adopts a quadruplet design and supports a 44mm full-frame image circle. The back focus from the M48 thread is a standard 55mm. The front thread is M92*1. At the camera end, it is equipped with M68*1, M54*0.75, and M48*0.75 three sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.
Specifications:
- Focal Length (after attaching to 160APO): 896mm (35.28 inches)
- Focal Ratio (after attaching to 160APO): f/5.6
- Lens Configuration: Quadruplet design
- Back Focus Distance: 55mm (2.17 inches) — measured from the base of the M48 male thread
- Weight: 1.1kg (2.43 pounds)
- Rear-end Thread Types:
- M68×1
- M54×0.75
- M54×0.75 to M48×0.75 adapter (M48×0.75 internal filter thread)
