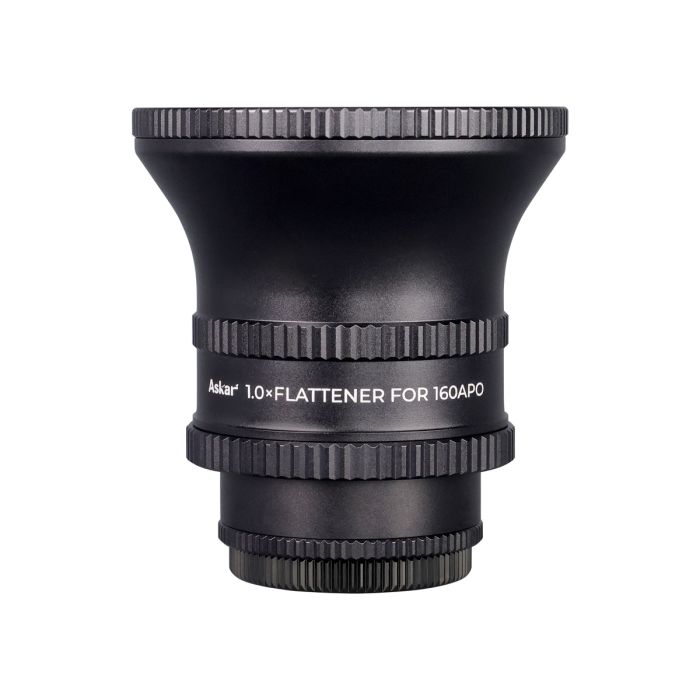

Askar 1x Full Frame Flattener for 160APO Telescope
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Askar 160APO comes with two optional premium accessories: a 1.0x flattener and a 0.8x reducer. Introduced here is the 1.0x flattener, which is optimized for the Askar 160APO and expands the telescope's versatility.
The 1.0x flattener does not alter the telescope's native focal ratio. When connected to the Askar 160APO, it maintains a focal ratio of f/7. The flattener corrects field curvature and coma, resulting in flatter field edges and sharper star points.
The 1.0x flattener features a triplet design and supports a 44mm full-frame image circle. The back focus from the M48 thread is the standard 55mm. The front thread is M92×1. On the camera side, it comes with M68×1, M54×0.75, and M48×0.75 adapters for easy connectivity. It also includes a built-in M48×0.75 2-inch filter thread for direct installation and use. The flattener is CNC machined, and both ends are equipped with threaded metal caps to prevent dust when not in use.
Specifications:
- Flattener Parameter: 1x
- Focal Length (after attaching to 160APO): 1120mm (≈ 44.09 inches)
- Focal Ratio (after attaching to 160APO): f/7
- Lens Design: Triplet
- Back Focus: 55mm (≈ 2.17 inches) — from the base of M48 male thread
- Weight: 0.56kg (≈ 1.23 lbs)
- Rear-end Thread Types:
- M68×1
- M54×0.75
- M54×0.75 to M48×0.75 (includes M48×0.75 filter thread inside)
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
The Askar 160APO comes with two optional premium accessories: a 1.0x flattener and a 0.8x reducer. Introduced here is the 1.0x flattener, which is optimized for the Askar 160APO and expands the telescope's versatility.
The 1.0x flattener does not alter the telescope's native focal ratio. When connected to the Askar 160APO, it maintains a focal ratio of f/7. The flattener corrects field curvature and coma, resulting in flatter field edges and sharper star points.
The 1.0x flattener features a triplet design and supports a 44mm full-frame image circle. The back focus from the M48 thread is the standard 55mm. The front thread is M92×1. On the camera side, it comes with M68×1, M54×0.75, and M48×0.75 adapters for easy connectivity. It also includes a built-in M48×0.75 2-inch filter thread for direct installation and use. The flattener is CNC machined, and both ends are equipped with threaded metal caps to prevent dust when not in use.
Specifications:
- Flattener Parameter: 1x
- Focal Length (after attaching to 160APO): 1120mm (≈ 44.09 inches)
- Focal Ratio (after attaching to 160APO): f/7
- Lens Design: Triplet
- Back Focus: 55mm (≈ 2.17 inches) — from the base of M48 male thread
- Weight: 0.56kg (≈ 1.23 lbs)
- Rear-end Thread Types:
- M68×1
- M54×0.75
- M54×0.75 to M48×0.75 (includes M48×0.75 filter thread inside)
