Astrodevice Canon RF Mount to Celestron RASA 8 Adapter
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please note that this is a 3d printed plastic part.
The device is designed to connect Canon cameras with RF mount to RASA 8 telescopes. One of the most well known of these types of cameras, the one dedicated for astrophotography, is Canon RA.

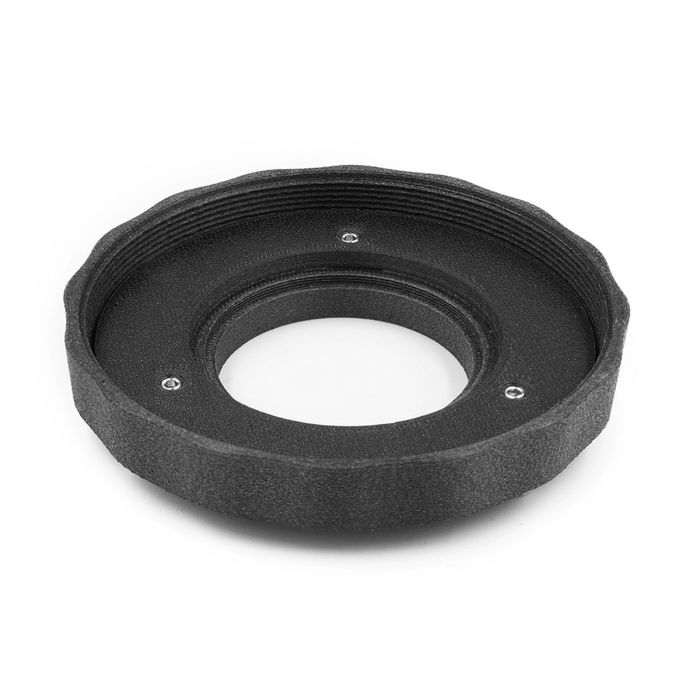

The adapter is screwed directly onto the telescope using a large M87 nut. Thanks to the fact that the nut is integrated with the rest of the adapter, the camera is mounted perfectly centrally. However, you can still adjust the rotation angle as you wish.
The adapter is equipped with a Front Tilting Mechanism that allows you to adjust the tilt of the sensor. A special 0.6mm washer is included, which, in addition to working with the sensor tilt adjustment system, also allows for possible extra backfocus tuning.
Front Tilting Mechanism enables adjustment of the tilt angle of the sensor. It’s an system similar to the one mounted on dedicated astrophotography cooled large-sensor cameras, but its unique feature is the mounting on the side of the telescope connection
The adapter has an internal thread for 2″ filter. To use it you have to unscrew the glass window from the telescope, which is also recommended by the telescope’s manufacturer in their documentation when using any filters. As usual in similar situations, if you would like to shoot full-spectrum, it is probably worth considering a UV/IR cut filter.
The device is made to keep the backfocus as close as possible to 28.73 mm, that is the distance from the front of the telescope to the camera sensor. The construction has no additional calibration screws and manufacturing tolerance is 0.1 mm. The whole thing – like all my adapters – should be made with 3D printing technique using PET-G reinforced with carbon fiber.
Note: In the sensor tilt adjustment mode, when working with the attached washer, the outer diameter of the 2″ filter housing must not exceed 50.7 mm.
Going full-frame with RASA 8
The RASA 8 telescope was designed to guarantee ideal image quality up to APS-C format. Full-frame sensors are much larger than this. Therefore, when using full-frame cameras, you can expect vignetting of varying geometries, depending among other things on the design of the camera itself. For example in Canon Ra cameras dedicated to astrophotography the vignetting takes on quite a classical shape but from the top and bottom an even, linear, darker framing is visible. This is quite normal, but it is good to know what you should expect. These darker areas can be corrected to some extent with flat frames and the remaining imperfections can be removed in post-processing, possibly by cropping the image to a slightly smaller format. This edge processing will also help to deal with the optical imperfections that appear when working with large sensors and small backfocus.
In summary, full frame photography is entirely possible with the RASA 8. In case of Canon cameras with RF mount, all you need is an Astrodevice adapter.
Here's some additional information you might want to review before making a purchase:
| Product Banner Type | sale |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Please note that this is a 3d printed plastic part.
The device is designed to connect Canon cameras with RF mount to RASA 8 telescopes. One of the most well known of these types of cameras, the one dedicated for astrophotography, is Canon RA.
The adapter is screwed directly onto the telescope using a large M87 nut. Thanks to the fact that the nut is integrated with the rest of the adapter, the camera is mounted perfectly centrally. However, you can still adjust the rotation angle as you wish.
The adapter is equipped with a Front Tilting Mechanism that allows you to adjust the tilt of the sensor. A special 0.6mm washer is included, which, in addition to working with the sensor tilt adjustment system, also allows for possible extra backfocus tuning.
Front Tilting Mechanism enables adjustment of the tilt angle of the sensor. It’s an system similar to the one mounted on dedicated astrophotography cooled large-sensor cameras, but its unique feature is the mounting on the side of the telescope connection
The adapter has an internal thread for 2″ filter. To use it you have to unscrew the glass window from the telescope, which is also recommended by the telescope’s manufacturer in their documentation when using any filters. As usual in similar situations, if you would like to shoot full-spectrum, it is probably worth considering a UV/IR cut filter.
The device is made to keep the backfocus as close as possible to 28.73 mm, that is the distance from the front of the telescope to the camera sensor. The construction has no additional calibration screws and manufacturing tolerance is 0.1 mm. The whole thing – like all my adapters – should be made with 3D printing technique using PET-G reinforced with carbon fiber.
Note: In the sensor tilt adjustment mode, when working with the attached washer, the outer diameter of the 2″ filter housing must not exceed 50.7 mm.
Going full-frame with RASA 8
The RASA 8 telescope was designed to guarantee ideal image quality up to APS-C format. Full-frame sensors are much larger than this. Therefore, when using full-frame cameras, you can expect vignetting of varying geometries, depending among other things on the design of the camera itself. For example in Canon Ra cameras dedicated to astrophotography the vignetting takes on quite a classical shape but from the top and bottom an even, linear, darker framing is visible. This is quite normal, but it is good to know what you should expect. These darker areas can be corrected to some extent with flat frames and the remaining imperfections can be removed in post-processing, possibly by cropping the image to a slightly smaller format. This edge processing will also help to deal with the optical imperfections that appear when working with large sensors and small backfocus.
In summary, full frame photography is entirely possible with the RASA 8. In case of Canon cameras with RF mount, all you need is an Astrodevice adapter.
