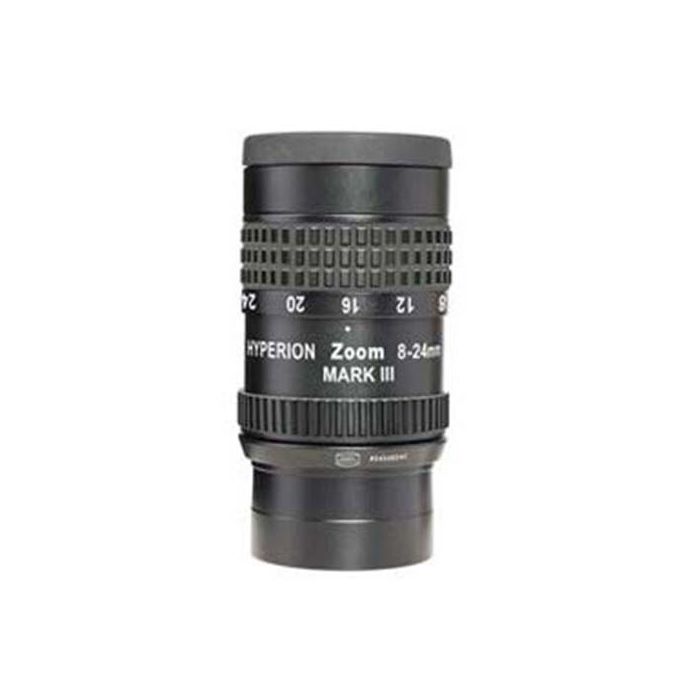

Baader Hyperion Mark-III Clickstop Zoom Eyepiece 8-24mm
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Baader Hyperion 8-24mm Clickstop Zoom continues the Hyperion tradition of delivering top-of-class performance and quality, at very reasonable prices. Zoom eyepieces have earned a lackluster reputation over the years, due to their compromises in optical design and execution. We think the Hyperion zoom will surprise many jaded zoom users with its combination of performance, quality, and novel features.
Some highlights of the Hyperion Clickstop Zoom:
• Consisting of 7 elements, the Hyperion optical design delivers outstanding sharpness and color correction over its wide flat field, even with fast telescopes. Users are reporting that the Clickstop Zoom matches the performance of their best fixed focal length eyepieces!
• Continuously variable focal length, with click-stops at 8, 12, 16, 20, 24mm. Remains approximately parfocal across zoom range. Click-stops enable precise focal length matching for bino-viewer use.
• Wide field. The field of view is 68 degrees at the 8mm setting, and 50 degrees at 24mm.
• Excellent viewing comfort. The eye relief of 12-15mm, large eyelens, and freedom from kidney beaning and blackouts result in a high level of comfort and ease-of-viewing, at all focal lengths.
• As with the fixed focal length Hyperions, Baader Planetarium has gone to great lengths to give the Hyperion Zoom the most advanced multicoatings ever used on amateur telescope eyepieces. The Hyperion Phantom Group multi-coatings truly rival the best in the world - including the famous Zeiss Abbe Orthoscopic! The difference in contrast and transmission is clearly visible at the eyepiece.
• Includes both 1.25" and 2" barrels. The 2" barrel attaches through an included adapter ring that has standard 2"x24tpi SCT threads. The 2" barrel also incorporates a reverse taper groove for better seating and retention.
• Superb fit and finish. Zoom motion is smooth and precise. Barrels are accurately machined, with excellent surface quality, and hard anodizing. The 1¼" Barrel is threaded for standard 1¼" filters, and the 2" Barrel for standard 2" Filter.
• Adjustable rubber eyecup works for both normal and eyeglass users. Rotating eyecup incorporates a variable-height helical adjustment with clickstop positions for setting the optimal spacing.
• Designed to integrate perfectly with many popular spotting scopes from Celestron/Synta (M35) and Zeiss (M45). Reaches focus on these spotting scopes even for very shortsighted observers.
• Complete System of Accessories for Digital Imaging as a high quality variable magnification projection optic:
• Optically Superb for Digital Imaging
• Direct Thread attach to Eyepiece (M43 threads at eyelens)
• Hyperion Digital T-Rings, for direct attachment of virtually every digital camera, camcorder, CCD Camera.
Features of the new Mark III Version:
• Optical quality further enhanced by optimizing the curve geometry of inner lenses
• Internal zoom actuators and lens group centering made more rigid while allowing less play
• Thermal response of mechanical system further improved with thermally matched metal components to allow use under even harsher environmental conditions
• Greaseless movement of internal zoom lens group
• Clickstop mechanics improved with greater smoothness and almost noiseless operation
• Focal zoom positions optimized and refocusing requirements minimized
• Dust protection enhanced throughout and front (telescope side) lens-group actuator sealed
• Eyelens-group made watertight to seal eyepiece from rain during terrestrial operation
• Large eyerest rubber cover redone to make the eyerest scratchproof for eyeglasses
• Eyerest height adjustment made greaseless with step-curved click rest - as found on high quality binoculars
• Now optimized for Binoviewer use. The adjustable height eyerest assembly is now fully detachable for creating "nose space" when using two Zooms in a binoviewer. A pair of Zooms now provides the ultimate eyepiece set for binoviewing.
• M43 threading accepts popular astigmatism correctors
• Small Hyperion rubber eyecup added to fit M43 thread
• Camera adapter thread changed from SP 54 to M43 (SONY) for a variety of afocal camera adaptations
Accepts photo-adapter HTA43T2 (M42x0.75) for easy and rigid adaptation of various DSLR-T-Mount rings (sold separately)
Owners of Celestron/Synta and Zeiss spotting scopes will appreciate the direct-attachment made possible by the Hyperion Zoom's innovative removable front barrel, which exposes spotting scope attachment threads.
Like the fixed focal length Hyperions, the Hyperion MKIII Zoom eyelens barrel has been provided with an M43 attachment thread (covered by the removable eyerest assembly). To adapt the zoom to a Camera's T-ring for classical eyepiece projection, all that is needed is an HTA43T2 Adaper ring (sold separately).
Available Separately: A complete system of M54 adapter rings enables cameras to be directly (and rigidly) close-coupled to your camera's lens filter threads for Afocal Eyepiece Projection. A series of 16 threaded rings provides compatibility with just about every digital (CCD/DSLR) and videocamera made. Please Note: The Mark III Zoom now utilizes an M43 thread at the eyelens end. In order to use the Hyperion Digital T-rings, a new M43 - M54 adapter ring is required.
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Hyperion |
| Focal Length | 8-24mm |
| Barrel Size | 1.25" (31.7mm) and 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 68° at 8mm - 50° at 24mm |
| Eye Relief (Designed) | 12-15mm |
| Filter Threads | Standard 1.25" (M28.5 x 0.6) and 2" (M48 x 0.75) Filter Thread |
| Coatings | Fully Broadband Multi-Coated (Phantom Group) |
| Lens Elements | 7 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 65x120mm |
| End Caps | 3 |
| Rubber Eye Guard | Yes (Retractible Eyecup) |
| Hide Found a better Shipped Price on Frontend? | No |
