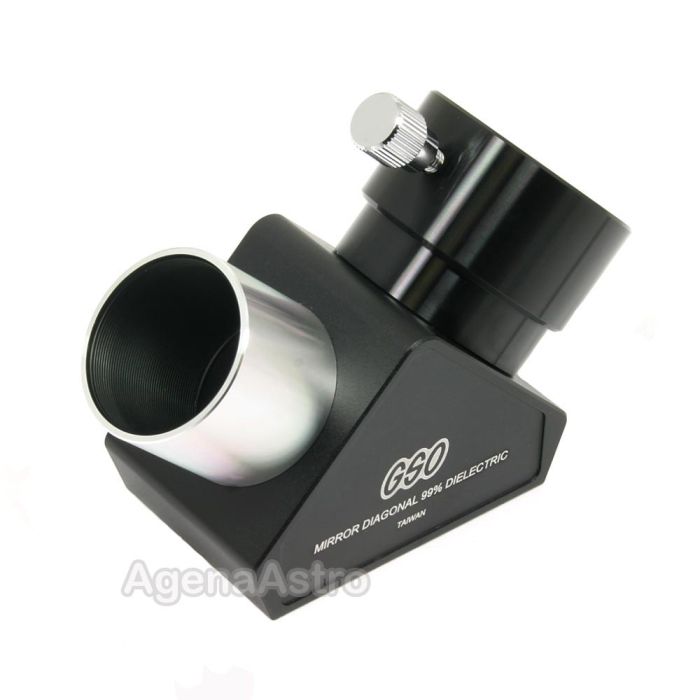

GSO 1.25" 90-deg 99% Dielectric Mirror Diagonal with Compression Ring
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 1.25" 90-deg diagonal features coated BK7 glass mirror precision ground to 1/10th wave flatness
- Hard dielectric multi-layer coatings with additional protective layer for >99% reflectivity and long lifetime
- Anodized aluminum finish
- Precision-machined body includes compression ring and internal safety stop to prevent long barrels from hitting diagonal mirror
- Threaded for 1.25” filters
- Comes in a foam-fitted storage box with two end caps
GSO's new 1.25" dielectric diagonal continues their tradition of offering superb products at excellent prices. This beautiful1.25" mirror diagonal features a BK7 mirror that is precision ground to a flatness of 1/10th wave (minimum) and features dielectric 6-layer enhanced silver coatings with an over-coat protective layer for a light efficiency of over 99% reflectivity across the entire visual spectrum. The clear aperture is 27.9mm.
The mechanics of this diagonal are also top-notch. The robust aluminum body and attachment barrels are precision CNC machined to strict tolerances from solid stock throughout. The 1.25" nosepiece is threaded to accept standard 1.25" astronomy filters. The 1.25" eyepiece holder features a brass compression ring to protect your eyepieces and accessories. It also includes an internal safety stop to prevent long barrels on some eyepieces and barlows from hitting the diagonal mirror. The diagonal sports a handsome anodized finish.
The combined result is a superb diagonal offering excellent mechanical and optical quality at a great price. Dielectric coatings are more durable than regular or enhanced aluminum coatings, so you will enjoy years of excellent performance from this product.
The diagonal comes in a nice foam-fitted storage box and includes 2 end caps. Eyepiece insertion depth = 30mm (1.18"). Weight = 5.9oz.. Made in Taiwan.
GSO has not specified the optical path length of this diagonal, but our measurements indicate that is is 80mm.
