Long Perng 1.25" Pentaprism 90-deg Diagonal
Availability: Please contact us for an update
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

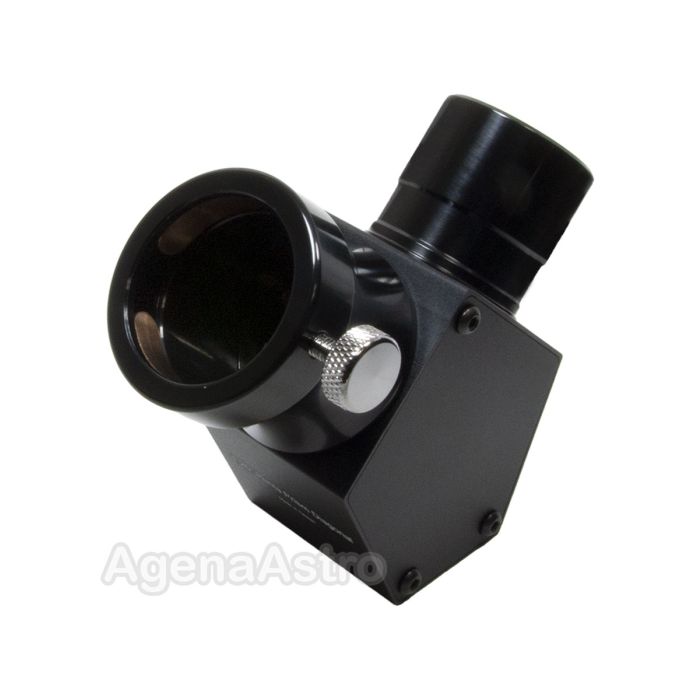

Long Perng 1.25" 90-deg pentaprism diagonal for use with Long Perng 1.25" Erect Image Divergent Binoviewer # K1.25N-T.
Features:
- Ideal for use with Long Perng 1.25" Erect Image Divergent Binoviewer* to provide a "correct" image (upright and correct from left to right, i.e., a correct, non-inverted, non-reversed image); especially useful for terrestrial viewing.
- Uses a high quality, dielectric multicoated, BK-7 glass pentaprism to change the viewing angle by 90-deg.
- 1.25" eyepiece holder features a non-marring brass-compression ring.
- 1.25" nosepiece is threaded to accept standard 1.25" astronomy filters and features a safety groove.
Additional Information:
- When used by itself with a refractor or catadioptric telescope and eyepiece, this diagonal provides an image that is inverted (upside down) from top to bottom but correct (not reveresed) from left to right.
- Not for use with Newtonian/Dobsonian reflectors.
- If used with other binoviewers, it will present an image that is oriented differently (i.e., not a correct image) than when used with the Long Perng divergent binoviewer. That is becuase the Long Perng binoviewer incorporates an image-erecting lens assemly that other binoviewers do not have.
- 1.25" eyepiece holder and nosepiece cannot be unscrewed from the diagonal body.
Specifications
- Barrel Size: 1.25"
- Viewing Angle: 90°
- Optical path length: 120mm
- Clear aperture: Xmm
- Materials: BK7
- Coating: Multi-Coated
- Housing material & finish: Aluminum & Anodizing
- Weight: 8.6oz (244g)
- Includes 1 end cap and 1 dust plug
