Lunt Solar 100mm Ha Solar Telescope with Pressure Tuner / B1800 Blocking Filter / 2" Fe...
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 100 mm f/7 dedicated h-alpha telescope.
- Internal etalon allows a <0.75 Angstrom bandpass.
- True Doppler pressure tuning system for precision tuning adjustments.
- The LS100THa/B1800 includes a 2″ Starlight Instruments Feather Touch Focuser, aluminum case, a sun- finder, 12″ dovetail, and a B1800 blocking filter.

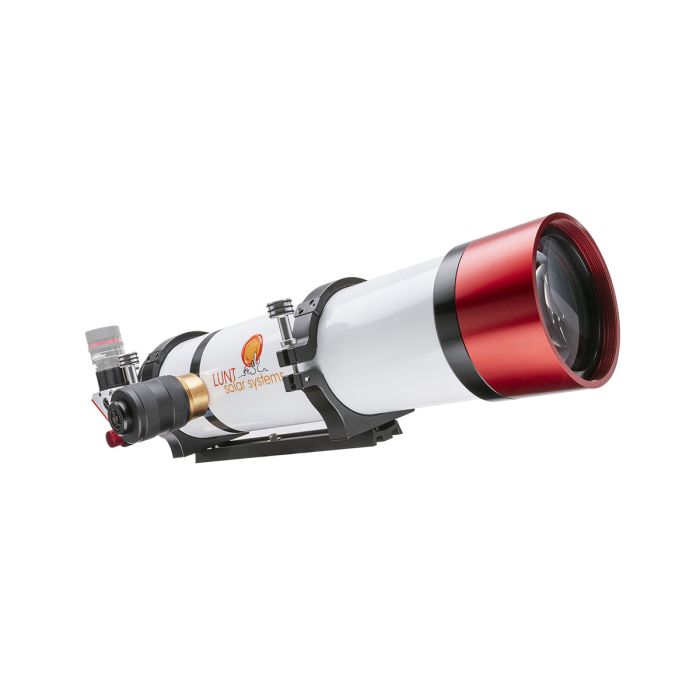

The Lunt Solar Systems LS100THa is a complete solar telescope. This refractor-based system has a precision-aligned singlet chromatic lens with a 102 mm aperture. The front singlet lens reduces the stray light over an achromat by half. With the matched collimation lens set, it also fully corrects on-axis coma, astigmatism and de-centering aberrations, and provides a full spherically corrected flat-field solar telescope.
The focal length is 714 mm, for an f/ratio of 7. Coarse focus adjustment is via a slide tube. Focusing is achieved with a high precision 2" Starlight Feather Touch focuser with 10:1 reduction as standard equipment. An internal etalon with tune adjustment allows for a <0.7 Angstrom bandpass.
True Doppler Tuning allows for a shift into and away from the user, adding a 3-D like component to the viewing experience. While it has minimal effect on solar prominences due to their location at the edge of the disk, it does have an effect on filaments and active regions on the surface. While looking at a filament at the center of the Sun, the user has the ability to Doppler shift from the base of the filament to the tip, following the filament through its structure toward you and away from you, allowing for enhanced visual and imaging capability for the observer as well as a research tool for the avid hobbyist. The pressure tuning system provides an order of magnitude more precision to the tuning of the desired features.
LS100THa Specifications: (single stacked)
- Optical Aperture: 102 mm
- Etalon: Internal <0.7 Angstrom
- Tuning: Internal Pressure Tune (Doppler True Tuning)
- Focal Length: 714 mm
- F Ratio: F/7
- Focuser: 2" Feather-Touch focuser with 10:1 reduction
- Tube diameter: 121 mm
- Tube length with blocking filter: 634 mm
- Storage: Aluminum finished hard case with fitted foam
- Weight: 12.2 lb
Included Accessories:
- Optical tube with 2" Feather Touch focuser with 1.5″ travel
- B1800 Blocking Filter
- Sun Finder: Televue Sol Searcher
- Mounting: Lunt 12" Dovetail
- Case: Aluminum Finished Hard Case with Custom Foam
Manufacturer part #: LS100THa/B1800
