CLOSEOUT - ALL SALES FINAL This Gen 1 version of the Ultimate Power Box is being replaced by a new Gen 2 version in June.
If you are tired of carrying multiple power packs and dealing with a mess of power and data cables, Pegasus Astro's Ultimate Powerbox, a sophisticated power control unit, is the “Ultimate” solution. Their idea is an enclosure that makes a sufficient number of amperes available. No cables disturb the movements of the mount and the instrument, only the main power cord and one USB data cord is attached to the Ultimate Powerbox from which branch off the other cables powering all devices.
The Ultimate Powerbox provides:
- 4 x 12V Smart Outputs
- 2 x PWM duty cycle channels for your Dew Heaters or Flatbox
- a USB2 High Speed Industrial Powered Hub with 6 available ports
- a Unipolar Stepper Motor Controller
- Environmental & Power metrics
- In a compact size with plenty of features!
- Note: User to supply 12V DC power input with 2.5mm connector. This is not included.
We strongly believe that if you own a remote observatory or you do advanced imaging you will love this device!
1. 4 x 12V DC Power outlets for your equipment
Four powerful Smart mosfet transistors provide “electric juice” to your precious equipment. Sophisticated short circuit and overload per port protections cut the power and report the incident into our software. Every mosfet is capable to provide up to 7A of current.
2. Built in Power Sensors
A precise voltmeter and an ampmeter (can measure up to 30A) measure and display in real time (200 measurements per second) your power input. If the input is more than 13.8V the power is instantly cut off to protect your equipment.
3. Individual Current Meter per 12V port
Every 12V output has an internal and independent current meter. You can view every port power consumption in the software.
4. More than 20A of total power
Controller has been designed to support up to 20 Amps of total current.
5. Stand Alone Software
Our modern standalone software has a neat dark skin! Control all Ultimate Powerbox features from this software. Receive metrics, View and zoom into graphs, name your outputs, tune every setting of your Ultimate Powerbox quickly and easily.
Industrial 6 port powered USB2 High speed Hub
An industrial USB2 port chip ensures that this USB hub will work flawlessly from temperatures of -40°C to +80°C. A nice feature is that USB Hub can be turned ON/OFF by the software. Moreover, USB port No 6 never turns off and supports up to 3A of current. A very handy feature if you have a Compute Stick * and you want to get a 5V input power. All USB ports include a unique short circuit and overload electronic protection.
* Please be advised that newer Compute (PC) Stick might consumer more than 3Amps of current. Moreover USB A to C cables have an internal resistor which limits current levels.
6. Embedded Stepper Motor Controller
A stepper motor controller will precisely move your focuser. Connect a Pegasus Unipolar Motor or another motor in the market e.g. Rigel, Robofocu, Moonlight Motor. Backlash compensation is already implemented in the firmware and can be enabled, tuned or disabled from the software. A fully ASCOM6 focuser driver is already available.
7. Two channel duty cycle PWM outputs
Two Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote controlled from your laptop using the supplied software.
8. Auto Adjustment of PWM (Dew Outputs)
Firmware can auto adjust the PWM Outputs by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Intelli Powerbox decide if it is time to switch on your dew heaters.
9. ASCOM 6 Fully supported
Ultimate powerbox fully supports ASCOM6. In combination with our main program which acts as a server you can use our latest ASCOM 6.3 supplied drivers to:
- Control Stepper Motor (ASCOM Focuser)
- Pass environmental settings to supported software (e.g Sequence Generator Pro / MaximDL ) (ASCOM ObservingConditions)
- Switch ON or OFF all 12V outputs. (ASCOM Switches)

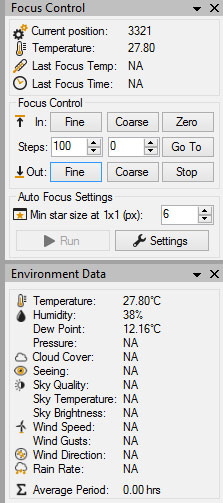

Above screenshot shows ASCOM Observing Conditions and Focus Driver in combination with Sequencer Generator Pro

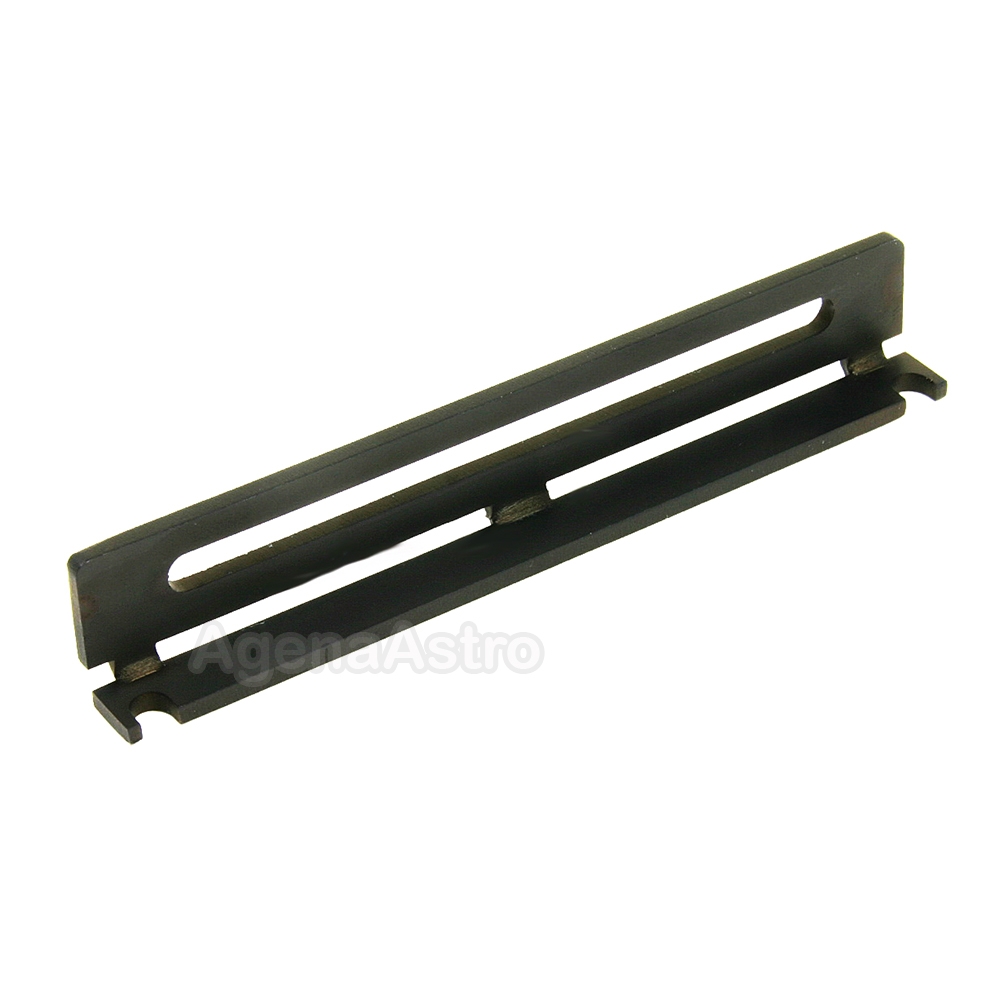

10. External brackets support Losmandy / Vixen Plate attachment
We provide an optional pair of brackets to grab the Ultimate Powerbox device onto a Losmandy 3” or Vixen plate. Both brackets can be screwed on the side of the controller and grab on your telescope.
11. Led Indications for power and failure states
Led can blink in patterns to warn you regarding important power issues (e.g over or under voltage). Moreover light can be turned off using the software. Our led is very dim but in case you don't like it on you can switch it off via the software.
12. Power Cables are included in the package
Four power cable of DC 2.1mm to 2.1mm male (1m) are included in the package.
13. External Environmental Sensor
External one (1) meter temperature & relative humidity sensor is included in the package. Know exactly the environment conditions of your location. Temperature, humidity and dew point measurements are displayed in the software.
14. Zoomable and Exportable Graphs for Power and Environment values
Software logs all voltage, current, temperature and relative humidity readings. All these plots are zoomable and easily exportable in PNG image & CSV text format. Keep a full record of your night conditions.
15. Timer to shutdown outputs
Choose the time and start timer to shutdown output ports when you schedule it.
16. Memory persistence outputs on startup
You can easily define which output should turn ON during startup. The setting is stored in system's EEPROM memory. A neat feature in case of a power failure.
17. USB2 Connectivity
Controller is always connected to the USB Hub (7th USB port). No extra cable needed. Just connect the USB Hub to your laptop and you are done.
18. Reverse Polarity Protection
Ultimate Powerbox has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!
19. Watchdog
A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze – when you have a remote observatory and you need to be certain that everything works as expected.
20. Upgradable Firmware
Device is firmware upgradable to support future features and bug fixes.

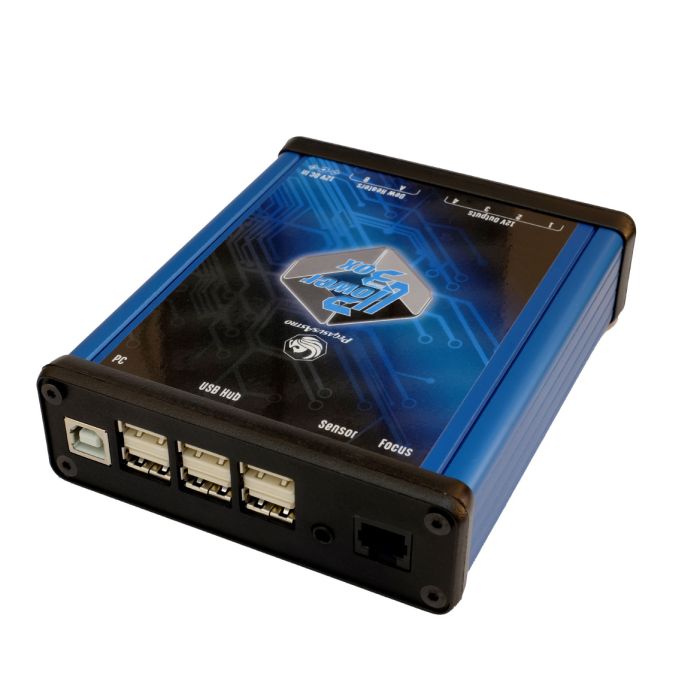

21. Compact Size and Lightweight
A blue anodized aluminum compact sized box enclose the controller board. Size is 13cm x 10cm x 10cm (5.1 inch x3.9 inch x 3.9 inch). Weight is 400 grams (14.1 ounces).
Specifications
- Input Supply Voltage: 12V DC (Reverse Polarity Protected)
- Power Input Connector: DC 2.5mm
- Note: User to supply 12V DC power input with 2.5mm connector. This is not included.
- Connectivity: USB2 – Type B USB Connector
- 4 x 12 Outputs:
- Maximum Current 7A each. 2.1mm Center Positive
- Software: ON/OFF
- 2 Channel x 12 PWM Outputs:
- Maximum Current 7A Each, Black Colored RCA Connector, Pulse Width Modulated (Suitable for Dew Heaters or Flatbox)
- Software: Duty Cycle % / OFF
- 1x Sensor Input: Mini Stereo Socket, Connectivity with Environmental Sensor
- 0-100% humidity readings with 2-5% accuracy
- -40 to 80°C temperature readings ±0.5°C accuracy
- Ampmeter: Measures 0 – 30A
- Voltmeter: Measures 5 – 15V
- High Speed (USB2):
- Industrial 7 port powered Hub
- Industrial Chip: Temperature range -40°C to +80°C
- 6 x High Speed (USB2) available ports
- USB Hub can switch ON/OFF on demand (software command)
- 6th USB port can deliver up to 3Amps
- Stepper Motor Controller:
- Unipolar stepper motors, max 1.6 Amps (0.8 Amps per phase)
- Auto Recover Fuse In case current is higher
- RJ45 socket
- Dimensions:
- 13cm x 10cm x 10cm (5.1 inch x3.9 inch x 3.9 inch).
- Weight is 422 grams (14.9 ounces).
What's In The Box
- Ultimate Powerbox Controller
- Temperature / Humidity Sensor
- 4 x Power DC 2.1 to 2.1 male cable (1m)
- DC Cable (2m) to Cigarette Lighter Adapter (10A fused)
- USB Cable Type B (3m)
- Note: User to supply 12V DC power input with 2.5mm connector. This is not included.
